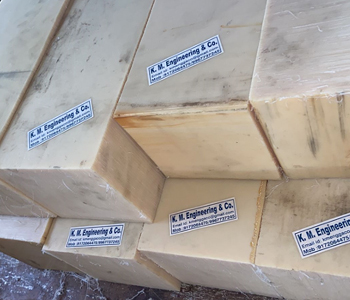

CAST NYLON SHEET AND RODS

Leading Manufacturers of Cast Nylon Sheets in Mumbai India. Our organization was started in Mumbai, India and now it has become one of the leading manufacturers and suppliers of Cast Nylon Sheets. We can supply in all size & shapes of Glass Epoxy Sheets across india.

Specification :

Thickness	1-100
Color	NATURAL IVORY
Size	ALL STANDARD SIZES
Usage/Application	Industrial
Brand	KM ENGG AND CO
Packaging Type	Sheet
Surface Treatment	Color Coated
Packaging Size	1 MTR X 1MTR
Shape	SQUARE RECTANGULAR
Surface Finish	MILL FININSH
Country of Origin	Made in India

ALL SIZES AVAILABLE AS PER CUT SIZE ALSO AND FULL SHEET ALSO

We are amongst the reputed organizations, highly engaged in offering an optimum quality range of Cast Nylon Sheets.

Stock Shape	Colour	Size Range	Dimensions

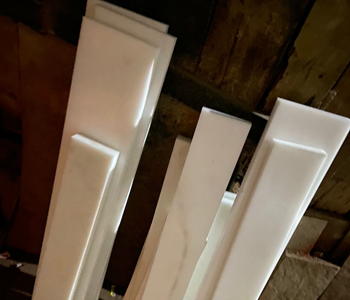

Cast Nylon Rods	Natural (Ivory / Cream), Black & Blue	Diameter : 20mm to 400mm	Length : Upto 2000mm
Cast Nylon Sheets	Natural (Ivory / Cream), Black & Blue	Thickness : 6mm to 200mm	Length : Upto 2000mm

Technical Data Sheet :

Technical Data	Method of Verification	Unit	3240
I.Physical Properties
Density	ISO 1183	g/cm3	2.0~2.1
Water absorption 24hrs	ISO 62	%	0.05~0.15
III.Thermal Properties
Max. service temperature -Short term	ISO 75-2	??C	/
Max. service temperature - Long term	ISO 75-2	??C	130~140
Coefficient of Thermal Expansion-LW	ISO 11359	m/K	/
Coefficient of Thermal Expansion-CW	ISO 11359	m/K	/
Thermal Conductivity	ISO 11359	W/(m??K)	2.2~2.5
Flammability	UL 94	Class	V-1
II.Mechanical Properties
Tensile strength at yield	ISO 527-2	MPa	???220
Tensile strength at break	ISO 527-2	Mpa	/
Hardness Rockwell	DIN 53505		120-125
Izod impact strength	ISO 179	kJ/m2	???33
Bending Strength	ISO 527-2	Mpa	/
Flexural strength-LW	ISO 179	Mpa	???314
Flexural strength-CW	ISO 179	Mpa	???216
Adhesive Strength	ISO 179	N	5600
Compression strength-LW	ISO 179	Mpa	???350
Compression strength-CW	ISO 179	Mpa	???147
IV.Electrical Properties
Volume resistively	IEC 60093	Ohm (??) * cm	1.3x1014
Surface resisively	IEC 60093	Ohm (??)	3.5x1012
Electric strength- LW	VDE 0303	kV/mm	???14.2
Breakdown Voltage-CW	VDE 0303	kV	>34
Relative dielectric coefficient	VDE 0303	/	???4.7
Dielectric Loss mudule	VDE 0303	50HZ	???0.04
Arc resistance	VDE 0303	S	/
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m, Thickness 0.5—180 mm
