PTFE SHEETS AND RODS

Polytetrafluoroethylene (PTFE), generally referred to as Teflon® (a registered trademark of DuPont), is a synthetic, nontoxic, fluorocarbon-based polymer that is widely used in many applications.

Teflon Sheets and Teflon Tubes low coefficient of friction, excellent electrical properties, high chemical resistance, and stability in wide temperature ranges make it a choice material for electrical and thermal applications.

Up to a service temperature of 260° C PTFE does not change its own physical and molecular properties.

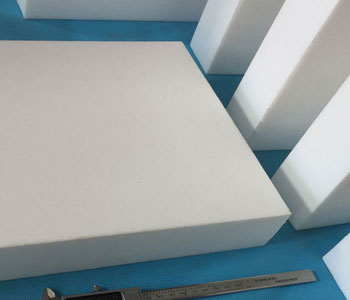

PTFE sheet is made of a fluoropolymer with low friction and exceptional chemical and weather resistance.

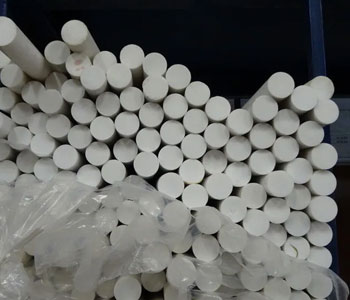

PTFE EXTRUDER RODS
We bring for our clients a wide range of PTFE Extruder Rods that are used in a industrial applications like chemical, marine, food, medical, automobile, construction and turnkey projects. These rods are available in in all the virgin and all filled grades.

Specification :

Size	5-300mm
Length	300mm/1000mm
Grade	Virgin & All Filled Grades
Shape	Rectangle
Density	0.65-0.95 g/cm3
Color	White
Material	PTFE
Water absorption	0.01%
Working Temperature	-180 to +260 Deg C

ALL SIZES AVAILABLE AS PER CUT SIZE ALSO AND FULL SHEET ALSO

We are a unique entity in the industry, actively committed towards providing an optimum quality range of Teflon PTFE Sheet.

Mechanical grade PTFE sheets are almost identical to Virgin and to the naked eye is very hard to differentiate. The difference is in mechanical grade reprocessed PTFE has been added. Generally, a very small percentage of the material is reprocessed. The percentage will vary however by the manufacturer.

MECHANICAL PROPERTIES	VALUE	UNIT	PARAMETER	NORM
Shore hardness	55	-	Shore D	ASTM D 2240
Compression strength	5	MPa	1% strain	ASTM D 695
Elongation at break	220	%		ASTM D 4894
Tensile strength	22	MPa		ASTM D 4894

THERMAL PROPERTIES	VALUE	UNIT	PARAMETER	NORM
Thermal expansion (CLTE)	13	10-5*1/K	23-100°C, long.	ASTM D 696
Service temperature	260	C	short term	-
Service temperature	260	C	long term	-
Glass transition temperature	20	C		DIN EN ISO 11357
Thermal conductivity	0.20	W/(k*m)		ASTM C 177

ELECTRICAL PROPERTIES	VALUE	UNIT	PARAMETER	NORM
Dielectric strength	80	kV/mm	In air, 0.125mm thick	ASTM D 149
volume resistivity	1017	O*cm		ASTM D 257
surface resistivity	1016	O		ASTM D 257
Dielectric constant	2.1	-	50-109Hz	ASTM D 150
