UHMWPE SHEETS AND RODS

UHMWPE ( Ultra High Molecular Weight Poly Ethylene ) to solve friction, wear and material flow problems in many areas of industry. The material is distinguished for its outstanding sliding properties, extreme wear resistance, high impact strength and very high resistance to chemicals and has established itself in technical applications.

UHMWPE is odorless, tasteless, and nontoxic. It is highly resistant to corrosive chemicals except oxidizing acids; has extremely low moisture absorption and a very low coefficient of friction; is self-lubricating; and is highly resistant to abrasion, in some forms being 15 times more resistant to abrasion than carbon steel. Its coefficient of friction is significantly lower than that of nylon and acetal, and is comparable to that of polytetrafluoroethylene (PTFE, Teflon), but UHMWPE has better abrasion resistance than PTFE.

Characteristics :

• ➽ Low density
• ➽ Low coefficient of friction
• ➽ High abrasion & wear resistance
• ➽ Very low water absorption
• ➽ High toughness (even at low temperatures)
• ➽ High elongation at break
• ➽ High impact strength
• ➽ Service temperature range -250 °C to +80 °C

Specification :

Material	HDPE
Thickness	2-50
Color	NATURAL
Size	STANDARD SIZES
Usage/Application	Industrial
Country of Origin	Made in India
Minimum Order Quantity	100 Kg

ALL SIZES AVAILABLE AS PER CUT SIZE ALSO AND FULL SHEET ALSO

We are amongst the reputed organizations, highly engaged in offering an optimum quality range of UHMWPE Sheets.

UHMWPE has good mechanical, physical and tribological properties, such as: extreme hardness and durability, good chemical resistance, abrasion resistance, impact resistance, being easy to fabricate, a very low coefficient of friction and being a non-polarity polymer

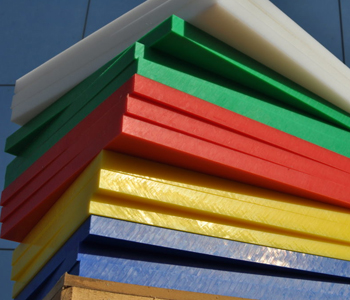

Stock Shape	Colour	Size Range	Dimensions

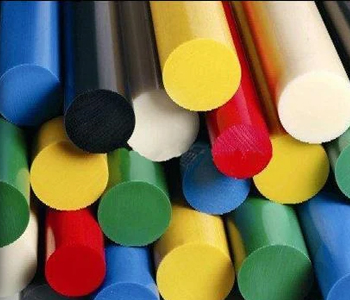

UHMWPE Rod	Natural (White), Black, Green & Colours	Diameter : 10mm to 200mm	Length : Upto 1200mm
UHMWPE Sheets	Natural (White), Black, Green & Colours	Thickness : 5mm to 100mm	Width : 1000mm to 2000mm Length : Upto 4000mm
